Purging device

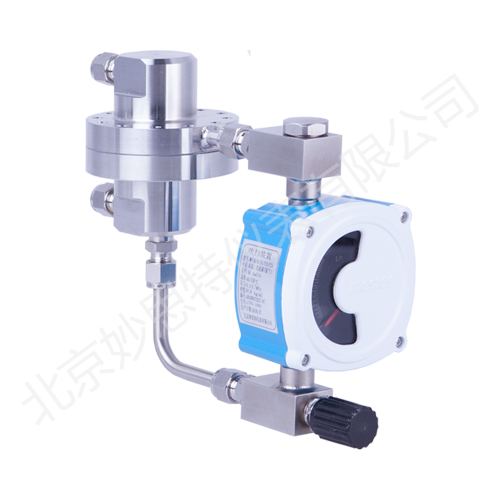

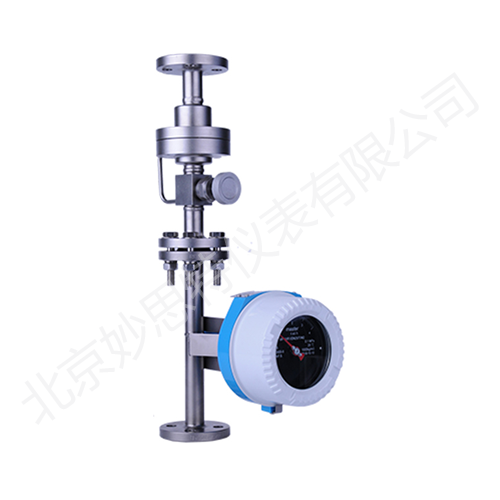

The MFC1 series purging device is composed of a small flow metal tube float flowmeter and a constant flow control valve produced by our company. The main function is to keep the flow constant when the system pressure or load changes. This product can display and adjust the constant flow value. Small and large functions are widely used in process control such as purging of transmitters in petroleum refining, chemical, ethylene, fertilizer, steel, chemical fiber and textile industries, and liquid level measurement by differential pressure.
● Design structure proven in practice
● Precision processing to ensure the consistency of parts
● Each unit has been carefully debugged to ensure stable set flow
● 100% water pressure test and air tightness test

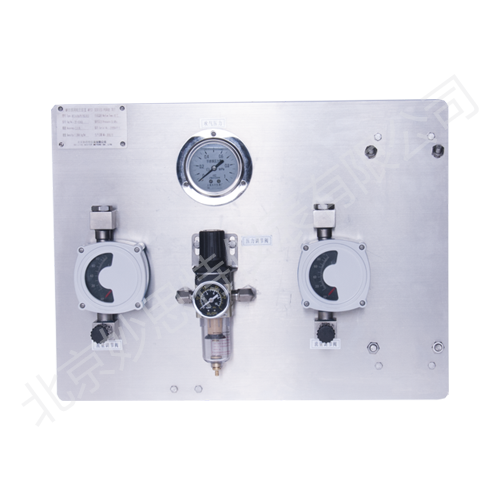

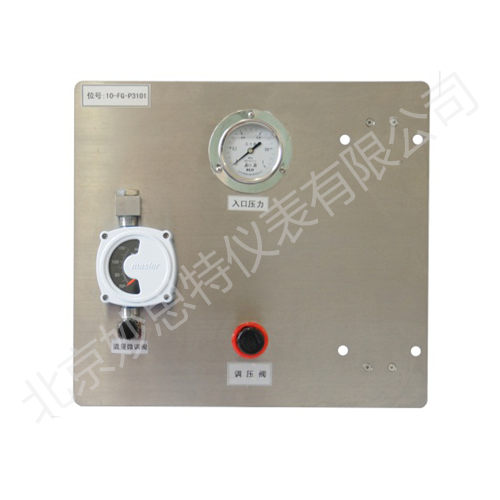

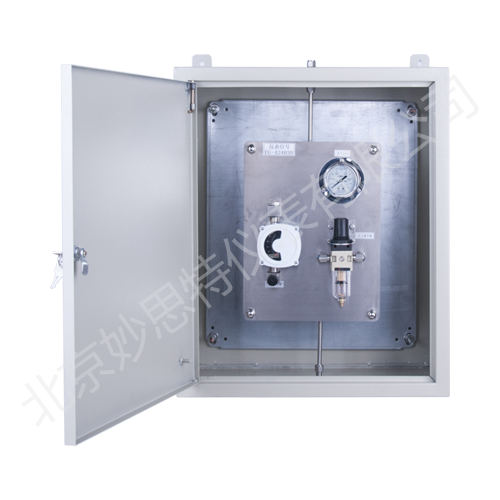

● Single-channel, double-channel, panel installation and box installation, etc.
Measuring range: water 3~4000L/h, air 0.05~80Nm3/h (0.1013MPa, 0℃)
Measuring caliber: 1/4”~1”
Turndown ratio: 10:1
Accuracy grade: standard ±2.5%FS and ±4%FS, special ±1.5%FS and ±2.5%FS
Medium temperature: -80～+150℃
Maximum pressure: 10MPa
Wetted material: 304, 316, 316L and PTFE gasket
Process connection: thread 1/4"～1", ferrule Φ6~Φ20mm, flange DN15 and DN25
