Levelmeters
Air blowing level gauge

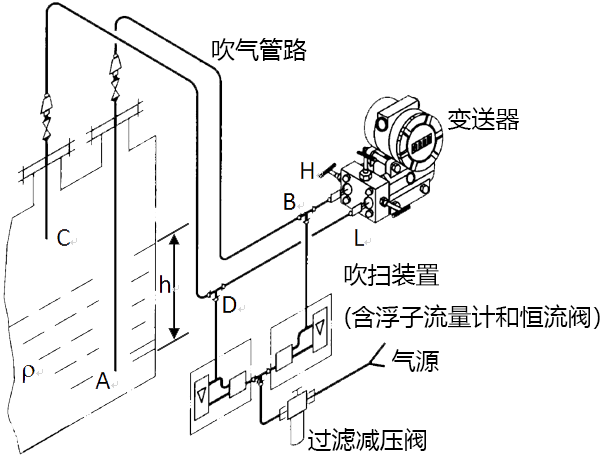

The MLC air blowing level gauge is essentially a differential pressure level meter. By blowing air into the pressure pipe, the differential pressure transmitter is isolated from the medium, which also isolates dangerous sources such as corrosion, high temperature, and radioactivity. No fear of clogging of media such as high-viscosity polymers and dirty crystals
Positive pressure pipe, isolation and anti-blocking

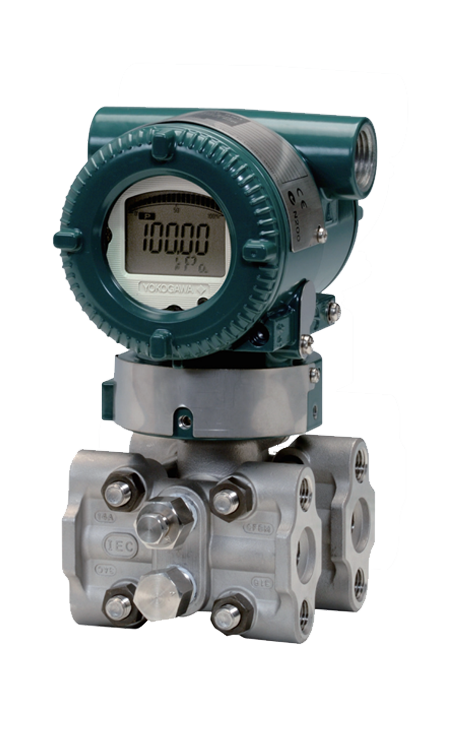

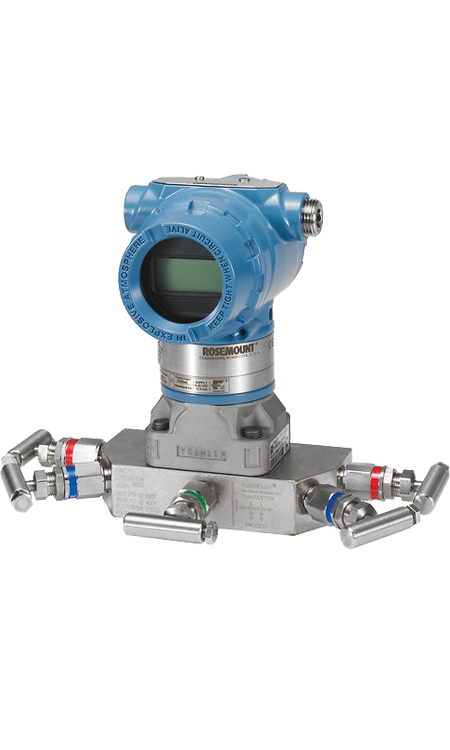

Equipped with high-quality transmitters such as Emerson or Yokogawa
Optional single-channel or dual-channel MFC1 series purging device, stable and reliable
Temperature resistance up to 800℃
Medium viscosity up to 5000cP
The user can also configure the pressure piping
Can be maintained while the gauge is running.
Measuring range: 0-30m
Measurement accuracy: ±0.1%FS
Medium temperature: -196~800℃
Nominal pressure: Class600 or 10MPa
Gas source and pressure: gas compatible with the medium, minimum 0.4MPa
Blowing flow: single channel maximum 400L/h (20℃, standard atmospheric pressure)
Wetted materials: 304, 316L, HC, titanium, etc.
Output signal: refer to Emerson or Yokogawa transmitter selection
Suitable for liquid level measurement under high temperature, corrosion, high viscosity, easy crystallization and radioactive conditions.
